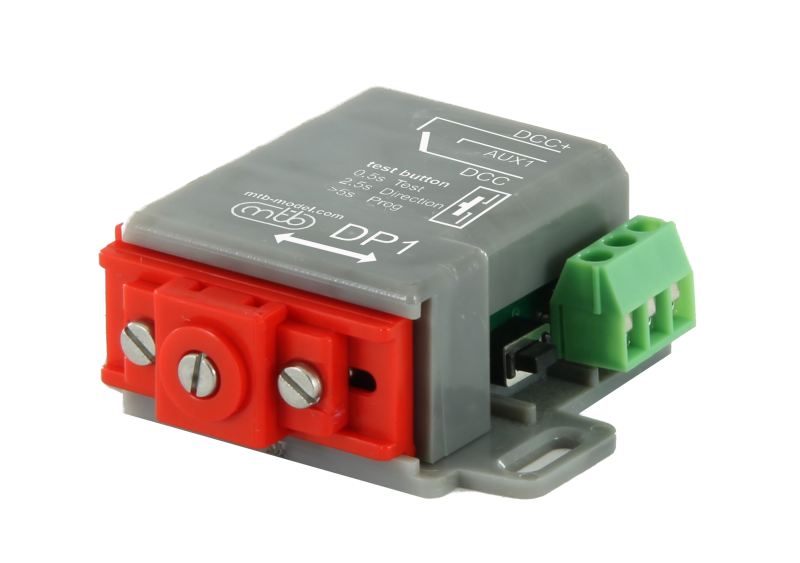

MTB DP1 Basic motor converter DCC

Description

• Integrated DCC decoder, low price
• Dimensions and mechanical function identical to MP1
• 3 stroke levels 3, 6, 9 mm
• auxiliary changeover contact, connected to DCC inputs
• Quick setting with configuration button

DP1 switches are equipped with a DCC interface that ensures the reception of digital commands and at the same time power supply for the switch operation. For powering the switches, 1x auxiliary contact is provided, which supplies the DCC signal to the frog. The indicator LED is used for signaling states, and an auxiliary button is used for configuration and testing.

DPx are designed for easy installation and control of switches via DCC, without the need to purchase, assemble and configure separate DCC decoder accessories..

Motorized converters for model railways

• Motorized adjusters with quiet and slow operation
• Miniature dimensions
• Built-in motor with planetary gear
• Universal connection as an electromagnetic or motorized adjuster
• Possibility of setting degrees of lift
• Integrated switching contacts
• Convenient installation
• Easy adjustment of the basic position of the rod

Adjusters are used for the electrical control of two-position mechanisms in models, typically switches or mechanical signals and barriers. The stroke is adjusted in several steps by the position of the pin in the carrier. The sliding mechanism ensures a smooth approach to the end position and its arrest.

The mechanism is equipped with position limit switches, i.e. the control power supply can be permanently connected, after reaching the appropriate position, the current draw and movement are automatically disconnected.
