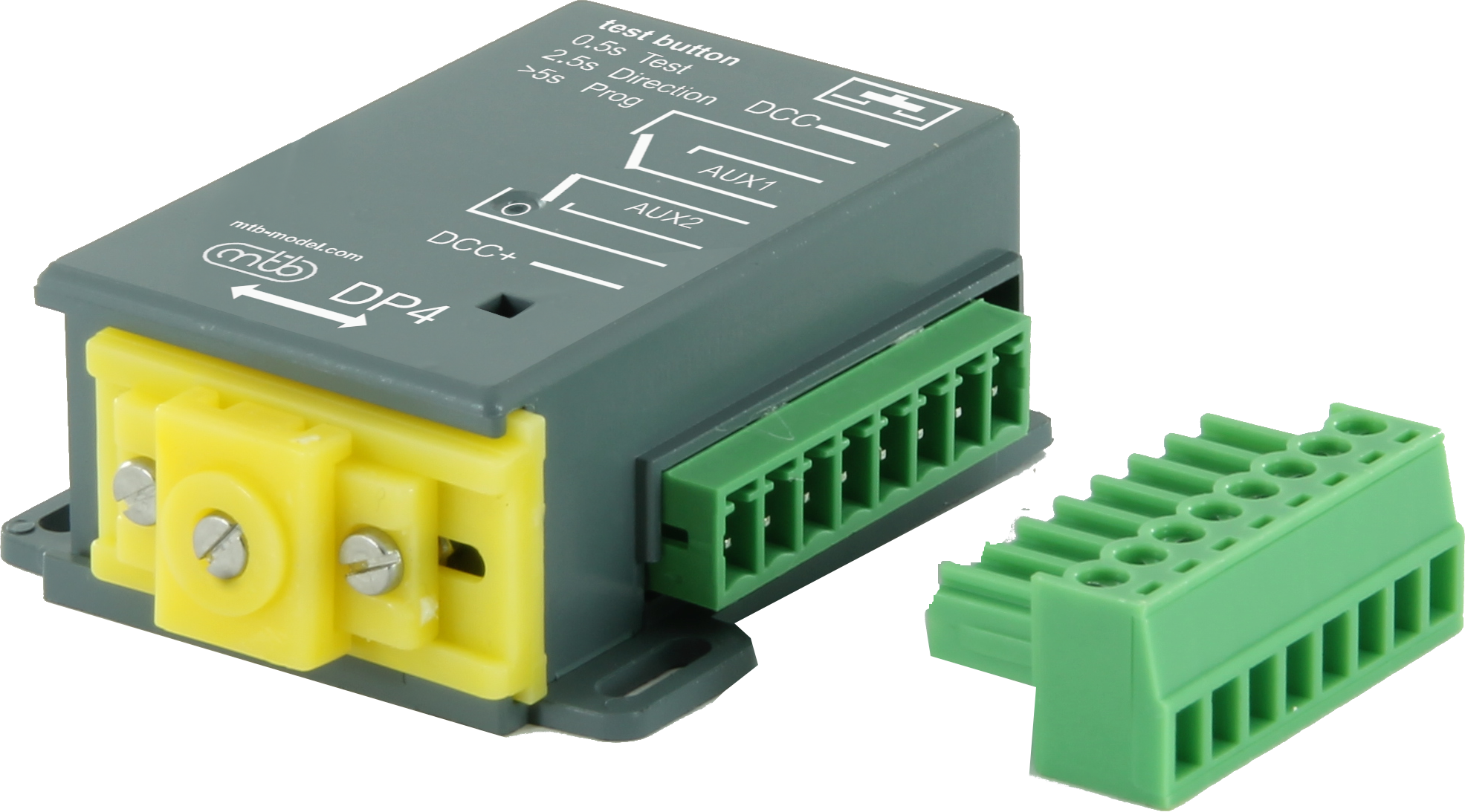

MTB DP4 Advanced turnout converter DCC

Description

• Integrated DCC decoder, low price
• Dimensions and mechanical function identical to MP4
• 4 setup of stroke- 3, 6, 9 and 12 mm
• Integrated double auxiliary contacts
• Quick and simple setup with the configuration button

The DP4/10 motor switches are equipped with a DCC interface that ensures the reception of the DCC commands toghether with power supply. They are also equipped with auxiliary switches AUX1, AUX2 for indicating and switching of frog polarization. The indicator LED is used for status signaling, the auxiliary button is used for configuration and testing.

DPx switches are designed for easy installation and control of switches via DCC, without the need to purchase and assembly and configuration of standalone DCC accessories decoders

Download the Manual here

Motorized converters for model railways

• Motorized adjusters with quiet and slow operation
• Miniature dimensions
• Built-in motor with planetary gear
• Universal connection as an electromagnetic or motorized adjuster
• Possibility of setting degrees of lift
• Integrated switching contacts
• Convenient installation
• Easy adjustment of the basic position of the rod

Adjusters are used for the electrical control of two-position mechanisms in models, typically switches or mechanical signals and barriers.
The stroke is adjusted in several steps by the position of the pin in the carrier. The sliding mechanism ensures a smooth approach to the end position and its arrest.

The mechanism is equipped with position limit switches, i.e. the control power supply can be permanently connected, after reaching the appropriate position, the current draw and movement are automatically disconnected.
